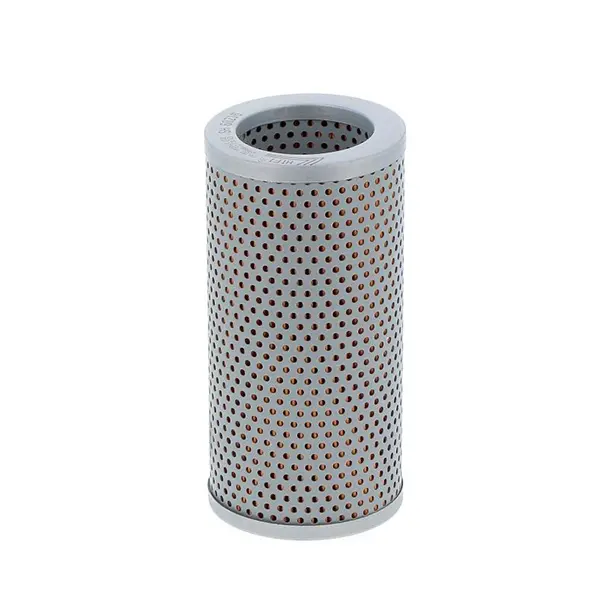

Hydraulic Filter 0706301035 P502535 HF28913 SH60215

Specifications

1 Determine the system operating pressure and flow rate

Start by identifying two key factors in the hydraulic system operating environment for the most critical component being protected, such as pumps and motors.

• nominal and maximum operating pressure

• nominal and maximum flow rate

2 Select the filter housing model

Refer to the Hydraulic Filter Model Series Selection Guide to select the filter housing that meets your requirements.

• Pressure families are color coded for low, medium and high models.

• Housing styles are identified by their shape code: spin-on, in-tank and in-line

• Porting type options

3 Consider application factors when selecting the filter

After the appropriate housing is identified, other application factors must be considered when selecting the appropriate filter. Use the filter choice tables to determine a specific part number.

•  components being protected

•  lSO Code desired

•  fluid type and material compatibility oil viscosity (SUS/cSt)and temperature

•  vibration/cyclic flow surges

•  media type

•  flow rate (GPM/LPM)

•  maximum allowable pressure drop
