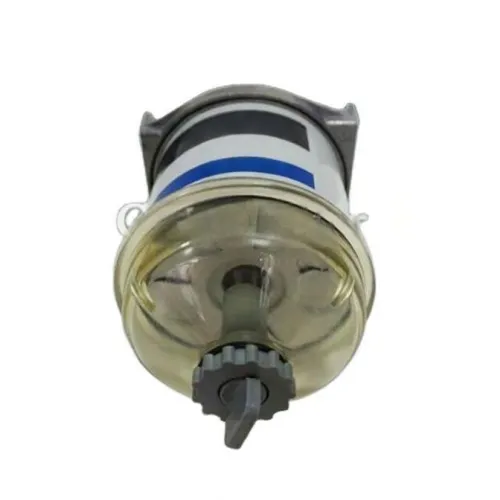

CAV296 Fuel Water Separator Filter Element Assembly
GREEN-FILTER factory’s high quality CAV296 Fuel Water Separator Filter Element Assembly is a screw-on type fuel filter produced by GREEN-FILTER, mainly designed to replace the traditional clamp-type CAV Delphi 296 and 901 filters. It continues the classic interface standard of the CAV Delphi series filter heads, making it compatible with both older equipment and newer models without the need for additional interface modifications.
Send Inquiry
Product Description
As a professional Fuel Water Separator manufacturer in China, GREEN-FILTER would like to provide you high quality CAV296 Fuel Water Separator Filter Element Assembly, which can simultaneously handle water in diesel, small particles caused by rust in pipelines, gel-like substances produced by long-term fuel storage and various invisible microscopic impurities. In many areas where biodiesel is used or fuel storage conditions are not ideal, installing the CAV296 can reduce unexpected failures and maintenance costs.
Product Features
CAV296 Fuel Water Separator Filter Element Assembly uses high-quality fiberglass filter material, capable of filtering particles smaller than 10 microns. This ensures that the fuel entering the engine is completely clean, reducing particle wear from the source. It features a built-in dedicated coalescing layer that can separate free water and emulsified water from diesel. In addition, the filter material structure is optimized to accommodate more impurities. Even when diesel quality is poor, frequent filter replacement is not necessary, making it more convenient to use.
CAV296 can replace products from many brands, such as Baldwin BF825、Donaldson P556245、Mann P917X, as well as original filters for agricultural machinery brands like Case and Massey Ferguson. In addition, each unit undergoes rigorous testing before leaving the factory, including burst resistance tests, structural strength inspections, and fuel compatibility tests. It can reliably handle various working conditions.
|
Specification |
Value |
|
Filtration size |
10 um |
|
Max.Flow capacity |
45 LPH |
|
Style |
Cav Type Filters |
|
Thread Size |
M14×1.5 |
|
Inclusions |
2×Hose tail fittings to suit 10mm(3/8")hose 2×Plugs |
|
Applications |
Diesel |
|
Construction |
Aluminium head with a transparent plastic bowl |
|
Operating pressure |
5 Bar/72 psi |
|
Included |
Integrated drain valve Filter key |
|
Weight |
1.9kg |
|
Dimensions |
~220mm diameterx~300mm high |
|
Parameter item |
Typical performance indicators |
Notes / Reference Criteria |
|
Filter precision |
10 μm (nominal) |
It can filter the tiny particles and protect the precision parts. |
|
water separation efficiency |
Gao |
Significantly reduces free water content in fuel, meeting high-end standards with levels below 15ppm. |
|
primary filter media |
glass fiber, special filter paper |
It provides high precision, high dust capacity and good chemical stability. |
|
working temperature |
-30°C to 120°C |
It is suitable for the wide temperature environment of engine room. |
|
structural strength |
> 0.7 MPa |
Ensure the structural integrity of the filter element under system pressure fluctuations. |
|
Applicable fuel |
diesel-biodiesel blend |
The filter material has good fuel compatibility. |
|
way to install |
spiral type |
Compatible with the CAV Delphi 296/901 interface standard, offering quick and convenient operation. |
How to replace CAV296?
First, turn off the engine and release the pressure. Remove the old filter element and clean the filter base. Then, apply a little oil to the seal of the new filter element and secure it in place. The filter head comes with a 10mm standard oil pipe interface, compatible with most diesel equipment, requiring no additional pipe welding or adapter modification.
CAV296 Fuel Water Separator Filter Element Assembly has a very wide range of applications, not limited to industrial machinery. Basically, any diesel-powered equipment can be equipped with it, such as agricultural machinery, construction machinery, and auxiliary marine engines.
Feel free to contact us for inquiries and purchases!
